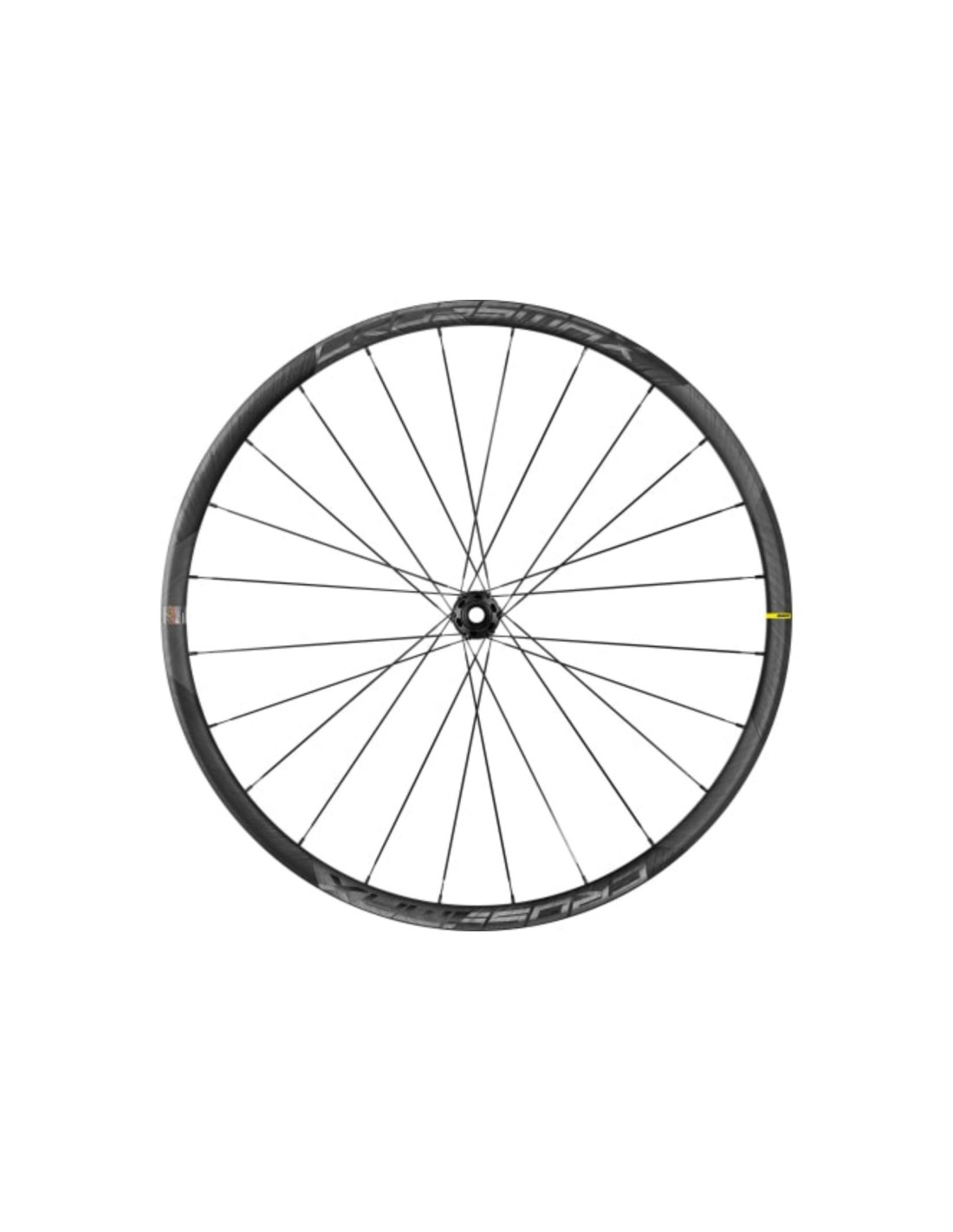

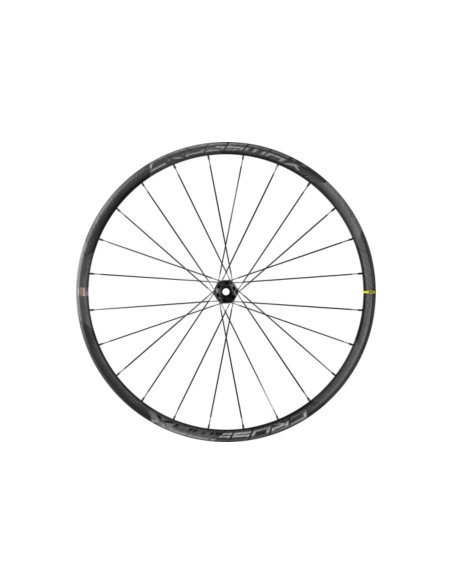

Weighing just 1,340g, this wheel is the dream of every cross-country racer who has only one thing on their mind: performance. Developed in collaboration with professional racers looking for a competitive edge in the World Cup or Olympic Games, it uses a 29" full-carbon rim (340g) to accelerate and climb quickly, without compromising stiffness or durability.
The special Adaptive Lay Up technique allows us to create carbon rims using less material between the spokes. The spoke holes are reinforced with strategically placed layers of carbon, reducing weight without compromising stiffness or durability. A lighter rim means faster acceleration, more efficient climbing and greater responsiveness. The outer carbon layer benefits from our new UD² design, which gives it a distinctive visual identity and improves durability.
Extensive field testing with our professional athletes enabled us to identify the most suitable inner width for fast and precise handling and optimum grip on fast race courses: 25 mm. For more technical terrain, some prefer a width of 30 mm, which offers better manoeuvrability. That is why we provide both options. The choice is yours and, if you want, you can combine the two options! For example, mount a Crossmax Ultimate 25 at the rear to improve acceleration and efficiency, and a Crossmax Ultmate 30 at the front to increase confidence and control on the toughest singletrack.
The carbon rim features 24 shrunken straight spokes (same spoke length all the way around), crossed in pairs for optimal power transfer and greater vertical flexibility. The new, lighter Infinity hub platform optimises lateral stiffness, while the spoking maximises power transfer. The Instant Drive 360 freewheel body, with its double ratchet system, provides quick engagement for more efficient acceleration out of corners. The rear hub is compatible with HG9, Micro Spline and SRAM XD freewheel bodies.
The Crossmax SL Ultimate 25 is only available in the 29" version, with 6-hole brake discs or Center Lock, and is compatible with a 15 x 110 front axle and a 12 x 148 rear axle. It comes complete with valves, spare spokes and MTB wheel bag.
Tackle hills and accelerate faster
The new Adaptive Lay Up technique saves 70 g per rim. The 25 mm wide rim weighs only 340 g.
Flexible and reliable control
Specific rim draping technique for excellent stiffness and better downhill control. Shrunken spokes, double spoking for greater vertical flexibility.
Efficient power transfer
New lighter Infinity hub combined with 24 straight spokes for greater stiffness and better spoke tension balance.
Adaptive Layup Technique
Strategic carbon layup, reinforced at the spoke anchorage points, for greater durability. Thanks to the Adaptive Layup technique, the rim is 17% lighter. A lighter carbon rim for improved acceleration and climbing performance. The ultimate solution for cross-country racing: light and easy to handle.

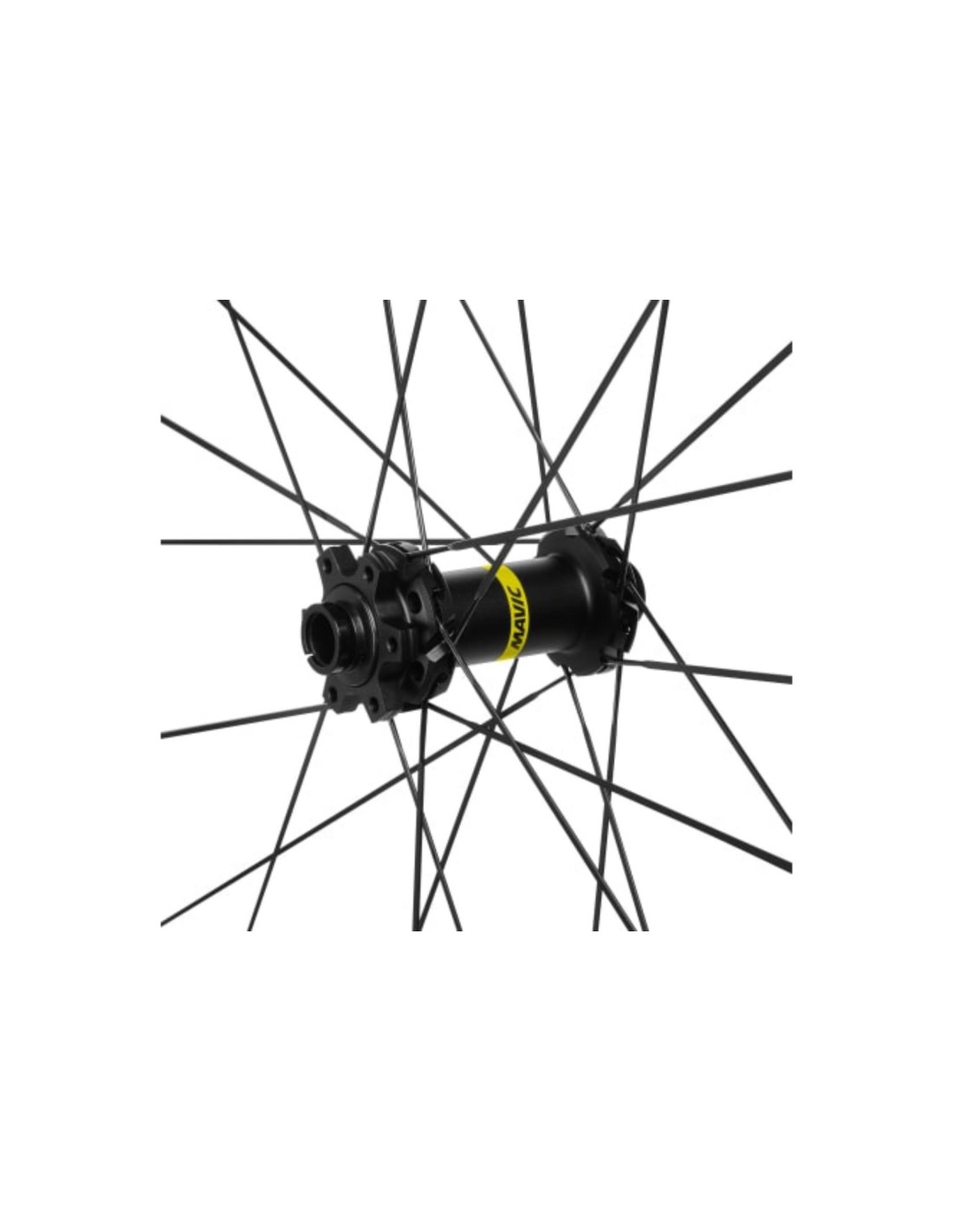

Infinity hubs
Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the front and rear spokes is identical. Easy maintenance thanks to tool-free solution.
QRM Auto bearing adjustment technology
Quality Mavic Auto bearings. These cartridge bearings are naturally double sealed, with C3 internal clearance. The system automatically adjusts to ensure perfect rotation without play in the long term.
Instant Drive 360 freewheel system
The new Instant Drive 360 freewheel system is ultra-light and efficient. A non-contacting, oversized rubber seal minimises friction and a wide choice of adapters makes it compatible with a wide range of frames and axles.
Tubeless UST technology
Traction and control. Universal Tubeless Standard. Ready-to-ride tubeless system. The UST system improves traction, control and comfort while reducing inertia and the risk of punctures.
Hubs
Freewheel technology: Instant Drive 360
Bearing technology: QRM self-adjusting - sealed cartridge
Axle size: front 15x110 / rear 12x148
Axle material: aluminium
Body material: aluminium
Freewheel: Sram XD VTT
Body design: INFINITY
Standard disc: 6 holes only
Rims
Tyre: UST Tubeless Ready - Use with Mavic tubeless rim tape
Braking: disc
Drilling: traditional (24 holes front/rear)
ETRTO size: 622x25TSS
Inner width: 25 mm
Profile: asymmetrical without hooks
Material: 100% carbon fibre with UD outer layer
Height: 25 mm
Delivered with
User guide
UST valve not mounted on wheel
Wheel cover
UST rim tape mounted on wheel
Multi-function adjustment key with rear wheel
2 spare spokes per wheel
Spokes
Material: steel
Spoking: cross 2 (front and rear)
Nipples: aluminium, black
Shape: straight, extra-flat, constricted, anti-rot (front and rear)
Intended use
ASTM category 3: cross country
Maximum weight supported by wheels: must not exceed 150 kg (including bike weight)
Maximum tyre size: width 64 mm - maximum pressure 2.45 Bar/36 PSI
Minimum tyre size: width 30 mm - maximum pressure 4.05 Bar/59 PSI
Compatibility
Freewheel body: convertible SHIMANO HG MTB steel
Front axle adapters: 15x110 convertible to 9x110
Freewheel body: convertible SHIMANO MS
Front axle adapters: convertible to 15x31 mm with Torque Cap
Freewheel body: convertible SHIMANO HG MTB aluminium
Rear axle adapters: 12x148 convertible to 9x141
