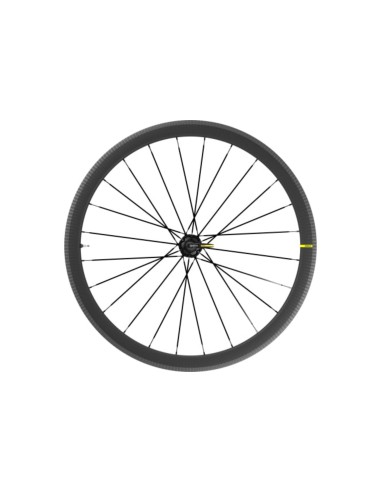

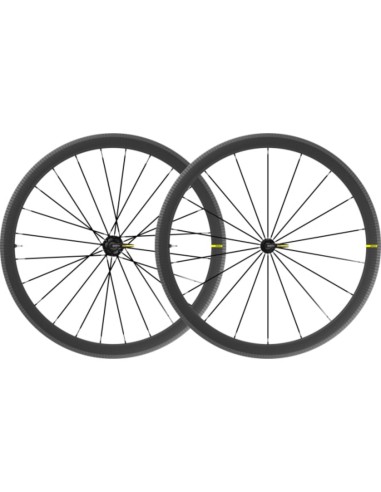

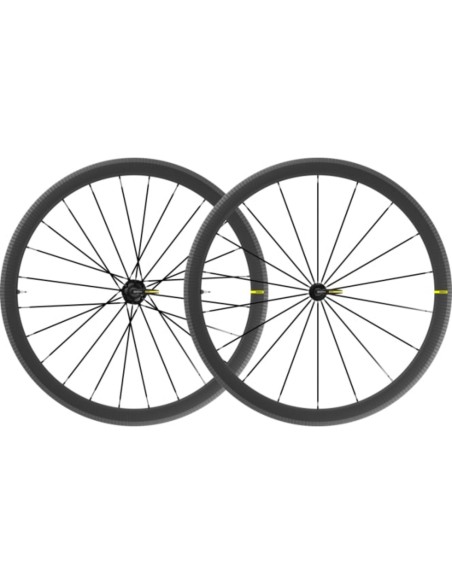

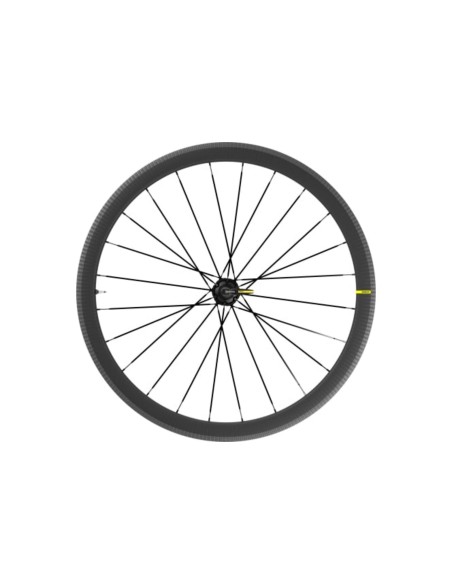

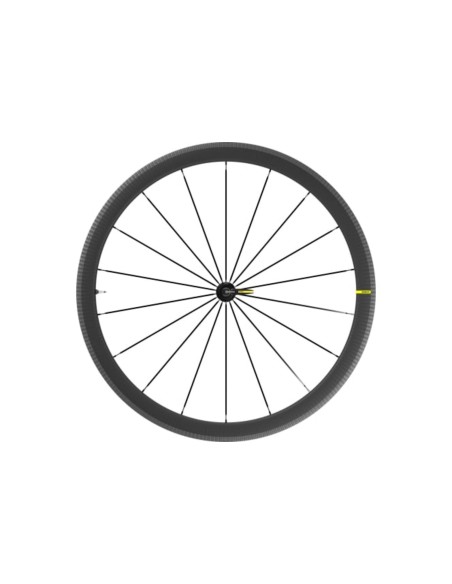

This versatile carbon road wheel is ideal for cyclists seeking the perfect balance between weight, aerodynamics and efficiency. The new spokes and hubs give the Cosmic SL 40 a light and lively feel when climbing and accelerating.
The rim is designed with a 40 mm deep and 26 mm wide NACA profile, specifically designed for allrounder performance on flat or hilly terrain. The new rim bottom shape makes it easier than ever to fit tubeless and tubular tyres. UST Tubeless means no tubes, so no friction, and more air volume means a smoother ride. The result is a faster ride with very low rolling resistance.
The improved spokes make this wheel 80g lighter than its predecessor, the Cosmic Pro Carbon UST. Combined with our brand new Infinity hub platform, which makes them faster and more responsive in every turn, they are stiffer and more efficient.
The Cosmic SL 40 is designed specifically for rim brakes. Our proven iTgMax technology includes a patented laser treatment of the braking track that reduces braking distance in both dry and wet conditions, while a special lamination and heat treatment process makes it the strongest and most durable of all carbon rims for rim brakes. They are available for Shimano cassettes and are convertible to Campagnolo and SRAM XD-R with optional steering bodies.
These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in our European carbon factory.
Accelerate and climb faster, maintain higher speeds
The NACA-inspired 40mm rim shape minimises aerodynamic drag for greater speed. The reduced inertia of the lightweight rim guarantees immediate acceleration. Double-cut flat spokes reduce weight and improve responsiveness.
Versatile performance for all road riding conditions
Minimum aerodynamic drag, low inertia and high lateral stiffness make it fast and efficient on all types of terrain, from flat to mountain climbs. iTgMAX braking track offers the best braking efficiency and highest reliability of all carbon rims
Improved UST Road offers greater speed, comfort and control in an easy-to-use tubeless system
The absence of tubes means less friction, greater efficiency and grip, and a reduced risk of punctures. The new shape of the rim bottom makes it easier to fit and change tyres

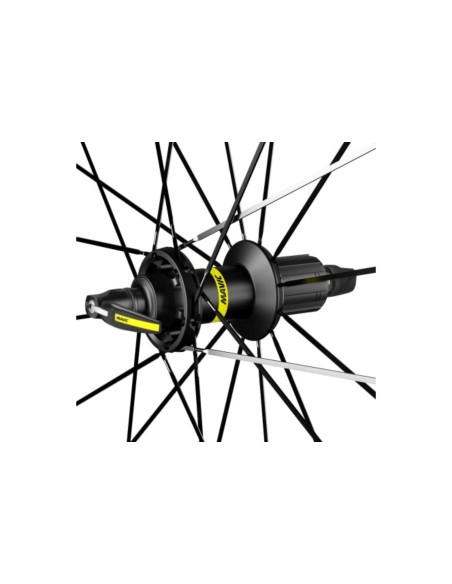

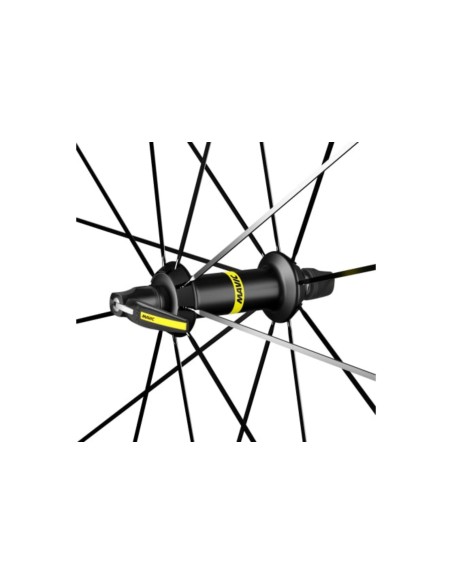

Infinity hubs
Efficient power transfer through optimised non-contact spoke lacing (no noise under load) and tension distribution. Front and rear spoke lengths are identical. Easy maintenance thanks to tool-free solution.
iTgMAX carbon clincher technology for rim brakes
Integral Glass Transition Temperature The iTgMAX technology is a 100% carbon rim base made of several unbroken layers of carbon fibre to create a one-piece rim without cutting the carbon fibre. The braking band is then laser-machined to ensure maximum braking efficiency.
QRM Auto bearing technology
Quality Mavic Auto bearings. These cartridge bearings are naturally double sealed, with C3 internal clearance. The system automatically adjusts to ensure perfect rotation without play in the long term.
Instant Drive 360 freewheel system
The new Instant Drive 360 freewheel system is ultra-light and efficient. A non-contacting, oversized rubber seal minimises friction and a wide choice of adapters makes it compatible with a wide range of frames and axles.
Tubeless UST technology
Traction and control. Universal Tubeless Standard. Ready-to-ride tubeless system. The UST system improves traction, control and comfort while reducing inertia and the risk of punctures.
Isopulse lacing
Optimal energy transfer. The use of radial spokes on the cassette side and crossed spokes for 2 on the opposite side optimises the umbrella on the cassette side and ensures a better balance of spoke tension between the left and right flanges.
Hubs
Freewheel technology: Instant Drive 360
Bearing technology: QRM self-adjusting - sealed cartridge
Axle material: aluminium
Body material: aluminium
Axle size: front 9x100 / rear 9x130 - Quick release only
Body design: INFINITY
Freewheel: Shimano HG road
Rims
Braking: brake pads
Tyre: UST Tubeless Ready - Use with Mavic tubeless rim tape
Height: 40 mm
Inner width: 19 mm
ETRTO size: 622x19TC
Material: 100% carbon fibre
Drilling: traditional (front 18 holes and rear 24 holes)
Spokes
Shape: straight, flat, constricted (front and rear opposite free wheel side)
Material: steel
Nipples: steel, ABS, black
Shape: straight, flat, anti-rot (rear free wheel side)
Spoking: radial (front) - Isopulse (rear)
Delivered with
User's guide
UST valve not mounted on the wheel
Carbon brake pads for each wheel
Quick release level 2
UST rim tape mounted on the wheel
Multi-function adjustment spanner with the rear wheel
Intended use
ASTM category 1: road only
Maximum weight supported by the wheels: must not exceed 120 kg (including bike weight)
Maximum tyre size: width 62 mm - maximum pressure 3.8 Bar/55 PSI
Minimum tyre size: width 23 mm - maximum pressure 6.75 Bar/97 PSI
Compatibility
Freewheel body: convertible SHIMANO HG light road
Freewheel body: convertible CAMPAGNOLO ED
Freewheel body: convertible SHIMANO MS
Freewheel body: convertible SRAM XD road
