4060 STC is here to let you rediscover the reason why we are all in love with mountain bike.
A life spent cycling is a well lived life. Chilometers of manual, curves to the limit of adherence, impossible jumps or mountaineering exploration on two wheels: 4060 ST is here to let you rediscover why we are all in love with mountain bikes. Long life for fun.
140mm rear / 150mm front | Wheels 29”
RockShox Pike Ultimate / Ammorizer RockShox Super Deluxe Ultimate
Group SRAM GX Eagle | Freni SRAM Code RSC
THEY FULL CARBON
A frame, two hiking options. Choose from 160 mm or 140 mm of back excursion simply by changing the shock absorber. In each config, a flip-chip and an eccentric series are not compromised on geometry.
OPTIONS

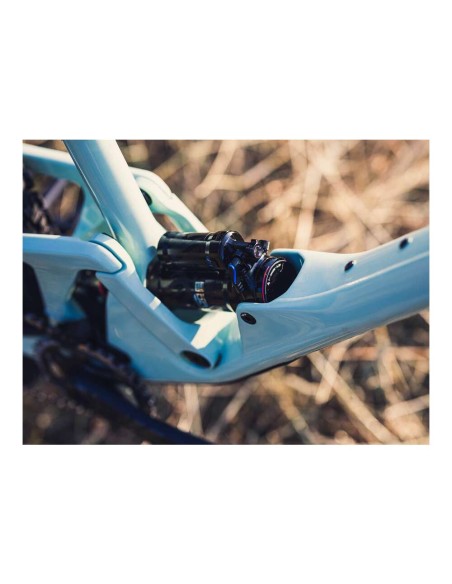

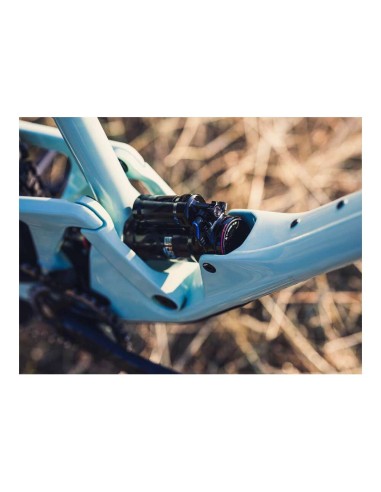

The design of our virtual pivot point suspension activated by the bottom link moves on Enduro Max bearings remaining extremely sensitive at the start of the race for an endless traction, becoming progressive for when the game gets serious and you need all the excursion. The smart design lowers weights, keeps everything rigid and is compatible with air or spring shock absorbers.
SUPERIOR LEVEL SOSPENSION
Virtual suspension design Pivot Point activated by the lower link moves on Enduro Max bearings remaining extremely sensitive at the start of the race for an endless traction, becoming progressive for when the game is serious and you need the whole excursion. The smart design lowers weights, keeps everything rigid and is compatible with air or spring shock absorbers.
STASH
Mechanical problems happen, but they don't have to ruin your exit. With Stash Box all the essential is at hand: universal reserve pin (SRAM UDH, included) and enough space for a mutitool and tubless repair kit.
ACCESSORIES
Do you want to bring your Enduro banana on the whole trails? Put the straps away and the duct tape. With mounting points on the upper tube, you can use a dedicated mounting solution without scratching your frame. Or banana.
SILENT RACE
Keep the silence: long travel racing bikes have the reputation of being noisy, but the protection of the sheath and the intelligent internal passage of the cables in the SCOR 4060 STC ensure a sienzioso operation. After all, a silent bike is a fast bike.
Wheel size: 29"
Rear stroke: 140mm
Front stroke: 150mm
Frame
SCOR 4060 full carbon frame
Lower-Link Driven Instant Center Linkage
140mm rear wheel travel
Fully guided internal cable routing
Stash box
Boost 148
SRAM Universal Derailleur Hanger
Lower ISCG 05 mount / Chainguide
For
RockShox Pike Ultimate RC2
150mm travel
Charger RC2 damper
DebonAir air spring
Low & high speed compression adjust
Low & high speed rebound adjust
44mm rake
Rear Shock
RockShox Super Deluxe Ultimate
RCT damper
Compression adjust (open mode)
Rebound adjust
Open / pedal / lock lever
Trunnion mount
Gears
1 x 12
Chainwheel
SRAM GX Eagle Carbon Lunar
170mm length
32T chainring
DUB interface
Cassette
SRAM GX Eagle (XG-1275)
10-52T
Chain
SRAM GX Eagle
Rear Derailleur
SRAM GX Eagle Lunar
Shifters
SRAM GX Eagle Trigger
Brakes
SRAM Code RSC
Centerline rotors; 200mm
Handlebar
SCOR Carbon Bar
31.8mm clamp
800mm wide
20mm rise
5° up sweep - 7.5° back sweep
Stem
Burgtec Enduro MK3
3D forged and fully CNC machined
31.6mm bar bore
35mm lenght
0° angle
Seatpost
Bikeyoke Divine
M/L 160mm travel
Triggy Alpha lever
Saddle
Fizik Land Alpaca
Wheelset
DT Swiss XM 1700 Spline
30mm internal width
Tubeless ready
Hubs
DT Swiss 350
Ratchet SL freehub
Straightpull spoke interface
Boost Spacing
Tires
Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R)
Compound: 3C Maxx Earth (F) / 3C Maxx Earth (R)
Casing: EXO (F) / EXO+ (R)
Tubeless ready
Tire Clearance
Width: 64mm
Diameter: 750mm
Extras
Stash box
SCOR 4060 X Slicy MySublimistick Frame Protector
Weight
14.00kg / 30.86lb
ASTM Classification
Level 4

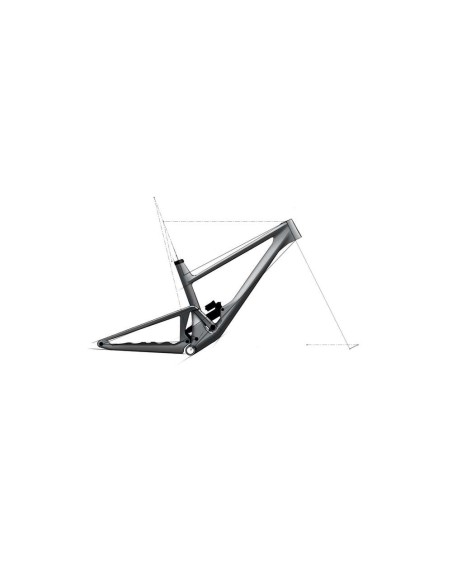

Stack MM: 611
Reach MM (reach): 461
Seat Tube MM (st): 425
Top Tube MM (tt): 590
Head Tube MM (ht): 99
Head Angle (ha): 65.5
Chainstay MM: 433
Front Center MM (fc): 777
Wheelbase MM (wb): 1210
BB Drop MM (drop): 29
Fork Length MM (fl): 560
Fork Rake MM (fr): 44
Standover Height mm: 723
BB Height MM: 340
Seat Tube Angle (Effective): 78
Seat Tube Angle @750mm: 76.5
